A standard install, step by step

From a bare wall to a hung TV, an installer's visit runs in this order:

1. Match the TV's weight and VESA hole pattern to a bracket whose rating is at least 1.5 times the weight.
2. Locate the studs with a finder, then prove them with one small probe hole where the plate will cover it.
3. Mock up the screen with painter's tape, then sit on the sofa and judge the size and height.
4. Drill and bolt the plate: pilot holes in the stud centers, then 5/16 in lag bolts snugged until the plate sits flat.
5. Hang the TV on its plate, set the locking screws and check level a second time under load.
6. Dress the cords down to the outlet and show the household how the tilt or arm moves.

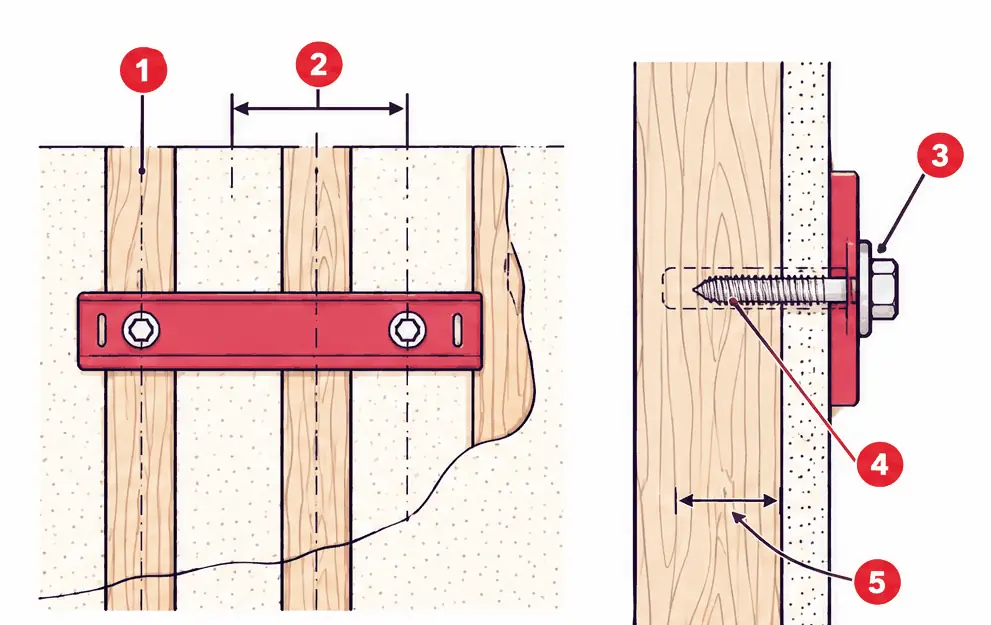

What the numbers show

1. 1Stud center line Each bolt is driven on the center line of its stud, found with a finder and a probe hole.
2. 2Stud spacing Studs sit about 16 inches apart, so a wide plate reaches two of them.
3. 3Washer and head A washer under the hex head spreads the clamping force over the plate.
4. 4Threads in solid wood The threads bite into the middle of the stud and end inside it.
5. 5Depth into the stud The bolt reaches well into the wood beyond the drywall thickness.

Studs, spacing and the center of the wall

Houses in Anaheim are framed with wood studs about 16 inches apart, and the stud that falls where the TV should be centered is the exception, not the rule. The bracket's wide plate reaches two studs while the screen stays centered on the sofa or the console, and a sliding TV adapter shifts the screen a few inches sideways on the plate when the studs and the room disagree.

Setting the height from the sofa

A TV hung at the height of a photo frame ends up too high for a sofa, and the neck tells the story an hour into a movie. The installer sits in the seat, marks the eye line and sets the screen center on it; a tilting bracket adds a few degrees of downward angle when the screen has to ride higher, as it does above a dresser.

The right height is the one nobody notices after the first evening.

When no stud lines up

Now and then the ideal spot is a stretch of hollow drywall: a wall centered on a window, a door frame beside it, or framing shifted during an old remodel. Studs still do the heavy lifting wherever they meet the plate; anchors are there to steady the rest of it.

• Strap toggles fold through a small hole and open flat behind the drywall, spreading the pull over a long strip instead of the rim of a hole.
• Load math compares the TV and mount weight with the anchor's published rating for that drywall thickness, keeping a wide safety margin.
• Split fixing puts one side of the plate on lag bolts in a stud and the other on toggles when only one stud sits under it.
• Heavy and moving loads such as arms and very large TVs get studs or a backer board, never anchors alone.
