TV Mounting Works Anaheim: Full-Motion TV Mounts in Anaheim
TV Mounting Works Anaheim covers full-motion TV mounts in Anaheim homes — corner walls, open kitchen-and-family-room layouts, big sectionals and bedrooms where the screen has to turn toward the bed — fastened across two studs and set for the reach the room needs.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Anchoring and setting the arm
An arm turns a TV into a lever, so a full-motion plate always spans two studs with a bolt in each, and the arm is rated well above the TV's weight and size. The first step is a stud map; the second is a plate level to the bubble; the last is setting the arm's tension so it holds in the position it is left.
| Arm feature | What it does | Check |
|---|---|---|
| Pivot pins | Let each segment swing | Tension adjusted to hold the TV |
| Tilt head | Angles the screen up or down | Locks at the chosen angle |
| Reach | Distance from the wall when extended | Matches the room |

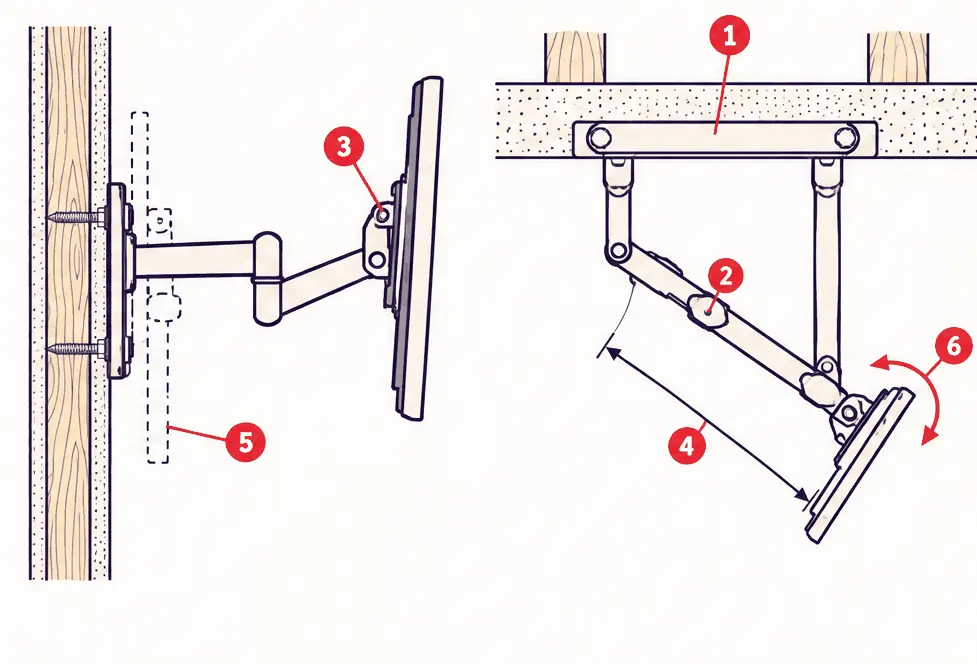

What the numbers show
- Plate across two studs The plate spans two studs with a bolt in each, which carries the leverage of the extended arm.
- Pivot pins Round vertical pins at the plate, the elbow and the head let each segment swing.
- Tilt head The head angles the screen up or down at the end of the arm.
- Reach The distance from the wall to the back of the TV when the arm is fully extended.
- Folded position The dashed outline shows the arm folded, with the TV close to the wall.
- Swivel The arm turns the screen to face another part of the room.
Where an arm earns its place
- Open kitchens and dining areas where the screen swings toward the cook or the table.
- Corner walls where a fixed mount would face the wrong way.
- Sectionals with seats at an angle to the wall.
- Bedrooms with the TV turned toward the bed.
Limits of an arm
Heavier TVs need shorter reach, and an arm folds flat when the TV is off. Fully extended arms are not a handle for moving the TV or a place to hang anything else.
An arm is a promise to put the screen back where it started.
Full-Motion TV Mounts — common questions
How much does a full-motion mount add?
About $30–$50 on top of the base range in 2026, on drywall over wood studs.
Does an arm need two studs?
Yes, at least; a plate spanning two studs, or a backer board across several, carries the leverage of the arm.
Availability & price range
Full-Motion TV Mounts: check availability and price range
Bookings aren't open yet — answer a few quick questions about the TV and the wall and get a typical Anaheim price range right here. Typical Anaheim prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
